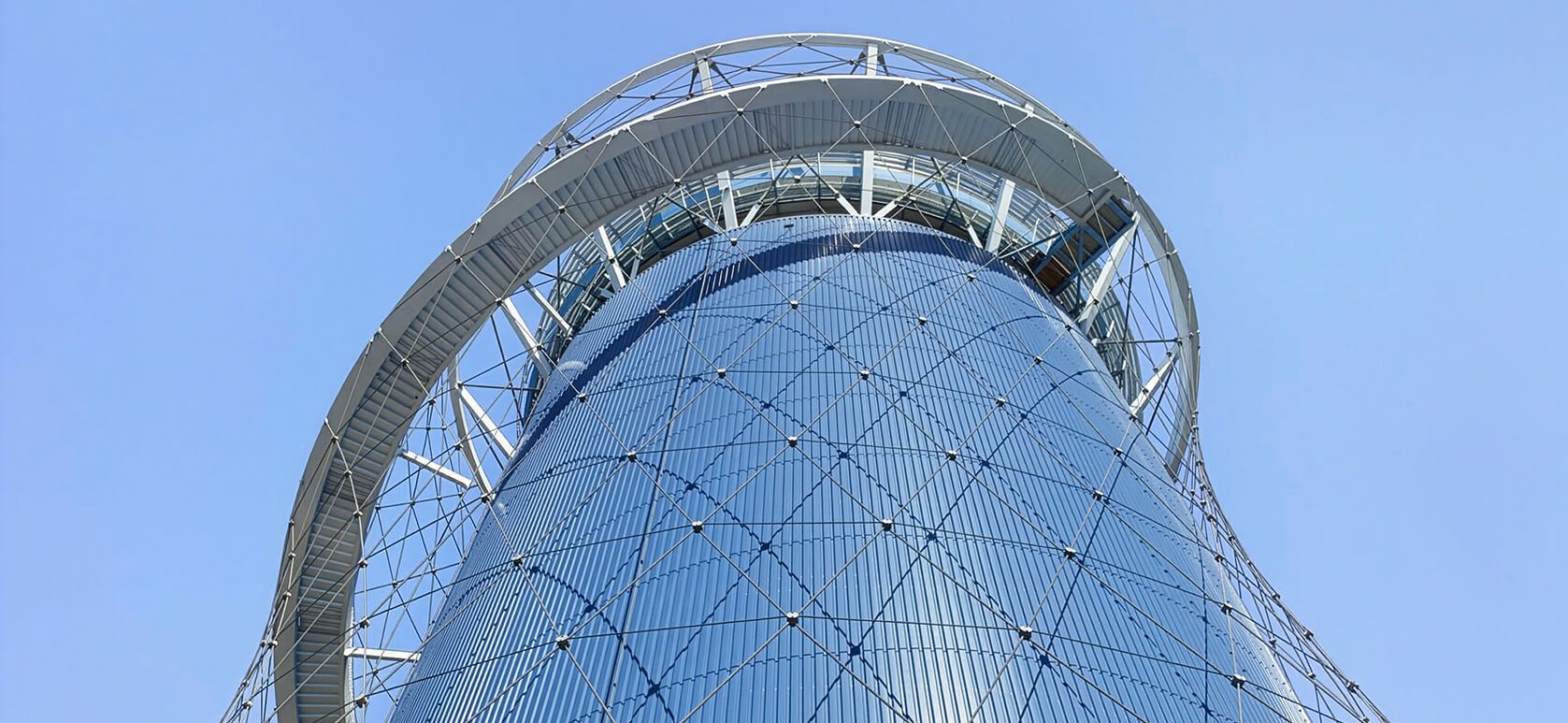

The façade of the Energiespeicher Heidelberg is defined by a layered ceramic tile system that transforms a purely technical structure into an architectural landmark.
Construction Principle
The building itself is essentially a large cylindrical thermal storage tank. Around this core, a secondary façade layer is installed, consisting of:
- A steel substructure fixed to the main tank
- Horizontally and vertically arranged mounting rails
- Individually mounted ceramic tiles (plättchen)
This creates a ventilated façade system, where the cladding is structurally independent from the insulated tank behind it.
Tile System
The façade is composed of thousands of small, prefabricated ceramic elements, characterized by:
- Slight variations in color tones and surface finish
- A grid-like arrangement with controlled spacing
- Durable, weather-resistant material properties
The tiles are typically mechanically fixed or clipped onto the substructure, allowing precise alignment and ease of replacement.
Functional Aspects
- The gap between tank and façade acts as a ventilated cavity, improving thermal performance
- The system protects the underlying structure from weather and solar radiation
- Maintenance is simplified due to the modular tile system
Visual and Architectural Effect
- The façade creates a pixelated, shimmering appearance, especially under changing light conditions
- Subtle color gradients give the large volume a lighter, more dynamic expression
- The cylindrical geometry is visually softened by the fine-scale tiling pattern
